Home Server Infrastructure

engineering
Architecture and service stack for a home network: a Docker/media server, a local AI compute node, and a Windows workstation.
Published

August 16, 2026

A note on scope: This document covers architecture and configuration. Anything that would expose credentials, private keys, or operational security details has been intentionally left out — those live in the encrypted local copies (SSH config, ~/.ssh/, rclone config, sudoers, WireGuard configs).

Network overview

Router: ASUS RT-AC3100 — xxx.xxx.xxx.xxx Network: xxx.xxx.xxx.0/24

Device IP Role
host-a (Lenovo ThinkCentre SFF) xxx.xxx.xxx.xxx Primary Docker/media server
host-b (ThinkPad) xxx.xxx.xxx.xxx AI/compute, VM host
host-c (Windows 11 workstation) — Desktop, pCloud staging, VS Code remote client
host-d — Workstation / jump host (Ubuntu Desktop)
Mark’s phone — WiFi, Tailscale client

DHCP reservations are set in the router for host-a and host-b so IPs stay stable across reboots and cable changes.

Remote access runs via Tailscale (installed on host-a and host-b) using each device’s 100.x.x.x address. Run tailscale ip -4 on a device to find its current address.

host-a — Primary Home Server

Hardware: Lenovo ThinkCentre SFF (migrated from an HP Pavilion laptop, March 2026) Hostname: host-a · OS: Ubuntu 22.04 LTS IP: xxx.xxx.xxx.xxx · User: xxxxx

Storage

Device Mount Purpose
Internal SSD / OS, Docker configs
RAID 5 array (5×4TB HGST, Yottamaster PS500 enclosure) /mnt/raid-library Primary media library
pCloud (rclone FUSE) /mnt/pcloud Cloud storage / cold archive

RAID array details:

  • Device: /dev/md0, filesystem ext4
  • UUID: xxxxxxxx:xxxxxxxx:xxxxxxxx:xxxxxxxx — used for reassembly, since drive letters shift after power cycles. mdadm always assembles by UUID, never by device name.
  • Raw capacity 20TB → ~14.6TB usable
  • The enclosure must be powered on before booting host-a for auto-assembly
  • Only a StarTech USB3CAB1M cable has proven reliable for this enclosure — two prior cable failures caused full array drops

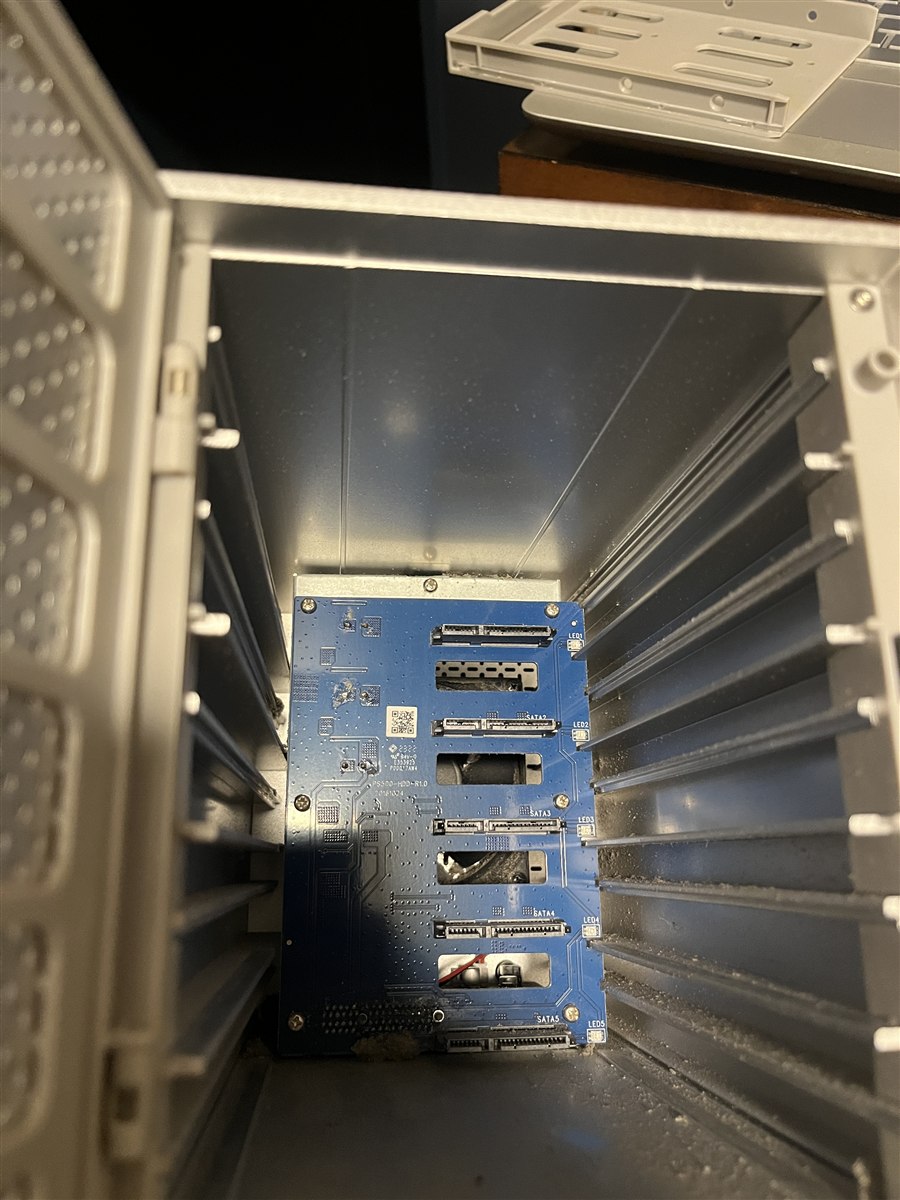

Inside the Yottamaster PS500 — the SATA backplane connecting five 4TB drives. The enclosure has been reliable; the cables have not.

Inside the Yottamaster PS500 — the SATA backplane connecting five 4TB drives. The enclosure has been reliable; the cables have not.

Docker services

All under ~/docker/<service>/docker-compose.yml, managed with docker compose.

Service Port Purpose
Pi-hole 53, 80 Network-wide DNS/ad blocking
Jellyfin 8096 Media streaming (serves /mnt/raid-library/media)
Kiwix 8080 Offline Wikipedia + Project Gutenberg (.zim files)
Calibre-Web 8083 E-book library, OPDS feed
Open-WebUI 8082 Chat interface for local Ollama models
Uptime Kuma 3001 Service monitoring/alerting

A watchdog script (~/scripts/check-docker.sh, cron every 5 min) restarts any of these six containers if they exit.

Music library pipeline

Fully manual — no scheduled imports. An earlier hourly Beets cron caused ~71 duplicate copies of every album and required a full Jellyfin wipe and library rebuild. Automation here is deliberately not used.

  1. New tracks land in a staging directory on host-a.
  2. beet import is run manually on host-a.
  3. Jellyfin library is scanned manually afterward.

Beets config highlights: move: yes, duplicate_action: skip, quiet_fallback: skip. Database at ~/.config/beets/musiclibrary.db.

Cron jobs

*/5  * * * *  ~/check-pcloud.sh              # pCloud mount watchdog
*/5  * * * *  ~/scripts/check-docker.sh      # Docker container watchdog
0    3 * * *  ~/backup-to-pcloud.sh          # Nightly backup to pCloud
0  */4 * * *  ~/scripts/raid-health-check.sh # RAID temp/sync monitoring
0    2 1 * *  echo check > /sys/block/md0/md/sync_action  # Monthly RAID scrub
0    4 * * 0  /sbin/shutdown -r now          # Weekly reboot, Sunday 4am

Three previously-active scripts were identified as harmful and removed: an import-books.sh job pointed at a nonexistent path, a storage-remount script that was destabilizing containers, and a raid-autoassemble.sh script that was periodically stopping a healthy RAID array. All three are archived under ~/scripts/archive/.

host-b — Compute / Local AI Server

Hardware: Lenovo ThinkPad P50, Ubuntu 24.04, 64GB RAM, Xeon 16 vCPUs, Quadro M2000M 4GB VRAM IP: xxx.xxx.xxx.xxx · User: xxxxx

  • KVM/QEMU + libvirt configured; Cockpit management UI at https://xxx.xxx.xxx.xxx:9090
  • Bridged networking (br0) so guest VMs get their own LAN IPs
  • Sleep/suspend/hibernate targets masked (server use)
  • pCloud mounted at ~/pCloudDrive; R projects stored there
  • VS Code Remote-SSH configured from host-c for remote development

Local AI stack

  • Ollama, GPU disabled via systemd override (CUDA_VISIBLE_DEVICES=) because the Quadro M2000M isn’t compatible with current CUDA drivers — runs CPU-only
    • qwen2.5-coder:14b — fast, daily interactive use
    • qwen2.5-coder:32b — slower, higher quality, better for batch work
    • Shell alias: qc → ollama run qwen2.5-coder:32b
  • Claude Code CLI (@anthropic-ai/claude-code) installed via npm with a home-directory prefix fix

The intended split: local model for quick queries, script review, and boilerplate; Claude Code for architecture decisions, multi-file reasoning, and anything where subtle errors are expensive to catch later.

On the roadmap for this machine: an overnight multi-agent research loop pulling market data (yfinance, FRED, SEC EDGAR) to build a company-rating and stock-screening pipeline, starting with a single-company loop before scaling. Claude API as a supervisor/critic layer over the local model.

host-c — Windows 11 Workstation

Debloated Windows 11, used as a workstation and staging point for pCloud content.

  • pCloud: mounted as Z: via rclone (network mode) + WinFsp, auto-mounted at login via Task Scheduler (rclone-pcloud). Z: doesn’t appear in the Explorer sidebar due to the debloat config — type Z:\ in the address bar directly.
    • rclone binary: C:\rclone\rclone.exe
  • Nightly backups via Task Scheduler:
    • 2:00 AM — robocopy mirror of C:\Users\xxxxx to a Toshiba 1.82TB USB drive (D:)
    • 3:00 AM — wbadmin full system image to the same drive, for bare-metal recovery

host-d — Workstation / Jump Host

Ubuntu Desktop (not macOS), used as a general workstation and jump host to the rest of the LAN.

  • Daily backup at 2 AM to host-a (/mnt/library/backups/imac/) via rsync, excluding caches, Trash, snap, node_modules, and the pCloud drive folder.
  • Audio quirk: the aux jack needs pactl set-sink-port ... analog-output-headphones re-run after each plug-in.

Backup systems

Source Destination Schedule Covers
host-a pCloud (pcloud:xxxxx/) Daily 3 AM Docker configs, ~/scripts/, Beets config/DB, a dated tarball of key /etc/ files (fstab, mdadm.conf, samba, sysctl, ufw, sshd_config, systemd unit for the pCloud mount), and the user crontab — 7 days of tarballs retained
host-d host-a (/mnt/library/backups/imac/) Daily 2 AM Home directory, rsync
host-c Toshiba USB drive (D:) Nightly 2–3 AM Full user profile mirror (robocopy) + full system image (wbadmin)

Disaster recovery for host-a is documented step-by-step in the migration notes: fresh Ubuntu Server install → Docker/rclone install → pull the pCloud backup archive → restore scripts, Beets config, crontab, and /etc/ files → restore Docker configs → reconnect the RAID enclosure (auto-assembles by UUID) → bring services up. This procedure has already been run once, during an earlier hardware migration.

Security principles

  • Key-based SSH auth throughout; interactive-only sudo on host-a (non-interactive SSH sessions silently fail on sudo, so scripts requiring privilege escalation run in a live session or via a NOPASSWD sudoers exception scoped to the specific command).
  • UFW firewalls scoped to the LAN subnet for services that don’t need to be internet-facing.
  • fail2ban on machines with SSH exposed beyond the LAN.
  • Restricted, single-purpose SSH keys between machines with different trust levels rather than general access.
  • Malware scanning of any file before it crosses from a lower-trust machine into the main library.
  • Cable quality is part of the reliability posture for the RAID enclosure specifically — cheap USB cables have twice caused full array drops.
  • Red-team review before finalizing any new machine’s setup: identify what an opportunistic attacker could actually reach, not just what the happy-path config looks like.

Lessons learned

  1. Cable quality is infrastructure. Two RAID failures and one USB-drive filesystem corruption event traced back to inadequate cables. StarTech/blue-rated USB 3.0 data cables are the standard; AWM “display” cables are not acceptable for storage I/O.
  2. rclone, not rsync, for pCloud. rsync over the pCloud FUSE mount is slow and failure-prone; rclone talks to the API directly and is far more reliable for cloud transfers.
  3. No automation for music imports. An hourly Beets cron caused a multi-thousand-file duplicate disaster and a full Jellyfin rewipe. The pipeline is manual by design.
  4. RAID drive letters aren’t stable. The Yottamaster enclosure reassigns sdX letters after every power cycle. All tooling and recovery steps use the array’s UUID, never device names.
  5. Docker containers hold file handles. Any RAID unmount, fsck, or mdadm operation needs Docker stopped first.
  6. Verify before changing. Standing practice: print the current script or config before editing, not after.
  7. Long transfers need screen/tmux. So they survive a dropped SSH session, with tee -a logging for resumability.
  8. Config backups matter as much as data backups. The original pCloud backup only covered Docker compose files; a full rebuild also needs /etc/fstab, mdadm.conf, smb.conf, sysctl.conf, UFW rules, sshd_config, and the crontab — all now included.

Roadmap

  • Multi-agent overnight research loop on host-b — single-company rating loop as a starting point before scaling to a broader screening pipeline.
  • Possible RAM upgrade path for the ThinkCentre if larger local models become a regular workload.
